Indirect heater AIR-BUS BV 470 FS
  • Indirect heater AIR-BUS BV 470 FS
  • Indirect heater AIR-BUS BV 470 FS
  • Indirect heater AIR-BUS BV 470 FS
  • Indirect heater AIR-BUS BV 470 FS
  • Indirect heater AIR-BUS BV 470 FS
  • Indirect heater AIR-BUS BV 470 FS

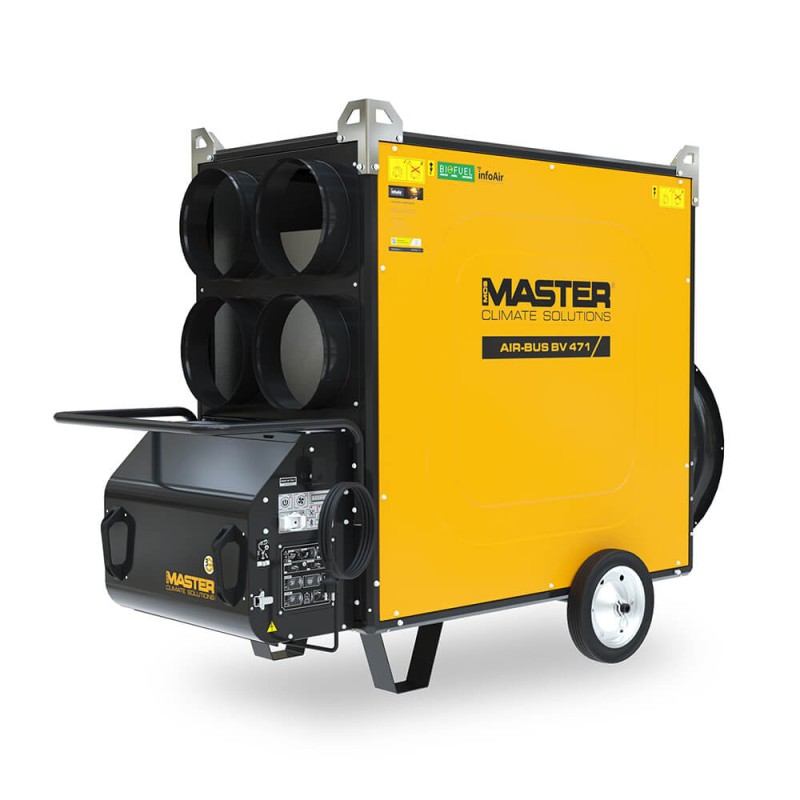

Indirect heater AIR-BUS BV 470 FS

BV 471S

Efficiency [kW]: 134
Air flow [m3/h]: 8000
Fuel consumption [kg/h]: 11
Diameter of the chimney connection [mm]: 200
Net weight [kg]: 226

25,700.00 zł
Tax included
Quantity

BV 471S
MASTER
View all products of MASTER

Indirect oil heaters are highly efficient devices that provide large volume of 100% clean, dry and fume free warm air. They are best for places with limited ventilation like shops, event’s tents, food preparation areas or exhibition halls. They can be used with flexible hoses that make the warm air be spread around easily.

Model description:

  • Axial fan
  • Achieved pressure 100 Pa
  • Possible connection to an optional room thermostat
  • Possible connection to 4, 2 or 1 flexible tubes
  • Possibility of flue gas exhaust

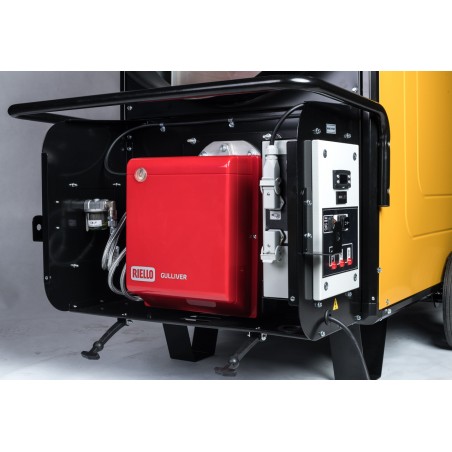

  • Separate oil burner
  • Summer-Winter switch for ventilation only
  • Fuel pre-heating
  • Electronic flame control with photocell
  • Fan-Limit thermostat with automatic reset
  • Limit thermostat with manual reset
  • Two oil filters: oil pump filter and suction filter
  • Suction filter with heating option as a standard
  • High efficiency heat exchanger
  • Stainless steel combustion chamber
  • Trolley included

Data sheet

Fuel type
olej napędowy
Efficiency [kW]
136
Efficiency [Btu/h]
464000
Efficiency [Kcal/h]
116900
Air flow [m<sup>3</sup>/h]
8500
Fuel consumption [kg/h]
12,93
Rated current [A]
6,9
Power [V/Hz]
220-240/50
Tank capacity [l]
brak
Thermostat control
możliwa TH-5 lub TH-D
Diameter of the chimney connection [mm]
200
Net weight [kg]
270
Gross weight [kg]
300
Blast opening [mm]
4 x 270 lub 1 x 600
Dimensions - L. X width. X height. [mm]
1790x880x1360
Ochrona
IP 55

Specific References

Download

Instrukcja obsługi nagrzewnicy B

Download (4.1MB)

Instrukcja obsługi nagrzewnicy B

Download (4.16MB)

Instrukcja obsługi nagrzewnicy B

Download (2.5MB)

Instrukcja obsługi nagrzewnicy B

Download (6.56MB)

Schemat nagrzewnicy BV 470

Download (533.38KB)

Schemat nagrzewnicy BV 470 F

Download (935.8KB)

Schemat nagrzewnicy BV 460

Download (578.43KB)

Schemat nagrzewnicy BV 470 FS ,

Download (535.37KB)
