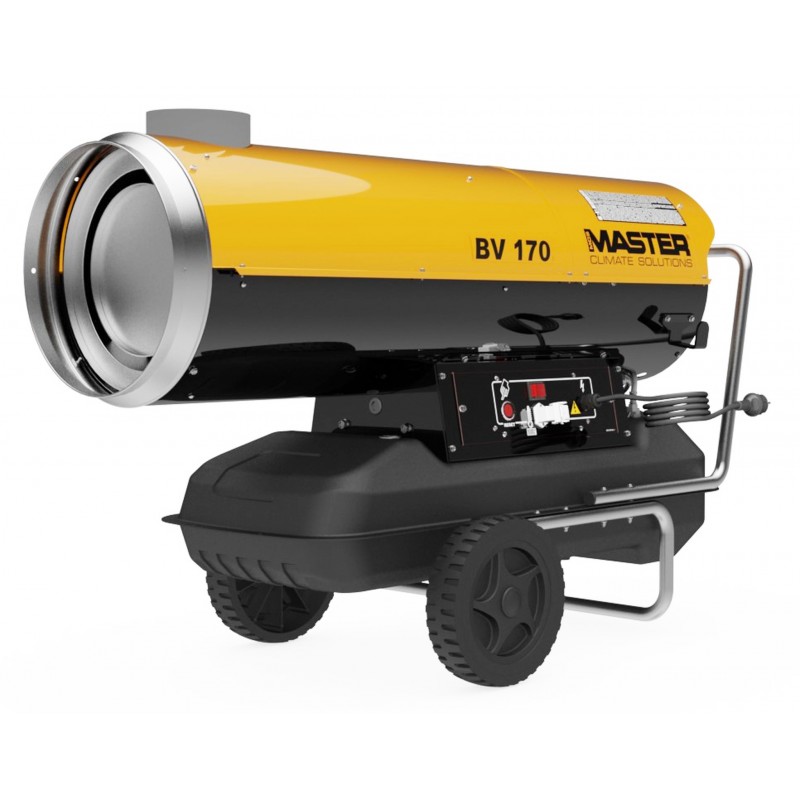

MASTER BV 170 E indirect heater

MASTER BV 170
Efficiency [kW]: 47
Air flow [m3/h]: 1800
Fuel consumption [kg/h]: 3,9
Diameter of the chimney connection [mm]: 150
Net weight [kg]: 80
8,750.00 zł
Tax included
Quantity

MASTER BV 170
MASTER
View all products of MASTER

Indirect oil heaters are highly efficient devices that provide large volume of 100% clean, dry and fume free warm air. They are best for places with limited ventilation like shops, event’s tents, food preparation areas or exhibition halls. They can be used with flexible hoses that make the warm air be spread around easily.


Advantages heater:

  • Possible connection to an optional room thermostat
  • Possible connection to a flexible tube
  • Possibility of flue gas exhaust
  • High air flow
  • Overheat thermostat
  • Post-ventilation
  • Transparent external suction filter
  • Two oil filters: oil pump filter and suction filter
  • Electronic flame control with photocell
  • Heat exchanger
  • Stainless steel combustion chamber
  • Oil tank with level indicator
  • Trolley included
  • Easy maintenance with external pump
  • Strong and long lasting construction

Data sheet

Fuel type
olej napędowy / olej opałowy
Efficiency [kW]
49
Efficiency [Btu/h]
167200
Efficiency [Kcal/h]
42100
Air flow [m<sup>3</sup>/h]
1800
Fuel consumption [kg/h]
4,7
Rated current [A]
3,5
Power [V/Hz]
220-240/50
Tank capacity [l]
65
Thermostat control
możliwa - TH 5
Diameter of the chimney connection [mm]
150
Net weight [kg]
67
Gross weight [kg]
84
Blast opening [mm]
340
Czas pracy na pełnym zbiorniku [h]
14
Ochrona
IP 44

Specific References

Download

Schemat nagrzewnicy BV 170 E

Download (2.13MB)

Schemat BV 170 model 2011

Download (614.26KB)

Schemat BV 170 model 2010

Download (478.12KB)

Schemat BV 170 model 2012

Download (2.15MB)

Schemat BV 170 model 2013

Download (2.06MB)

Schemat BV 170 UK 110V model 201

Download (478.22KB)

Schemat BV 170 UK 110V

Download (2.14MB)
