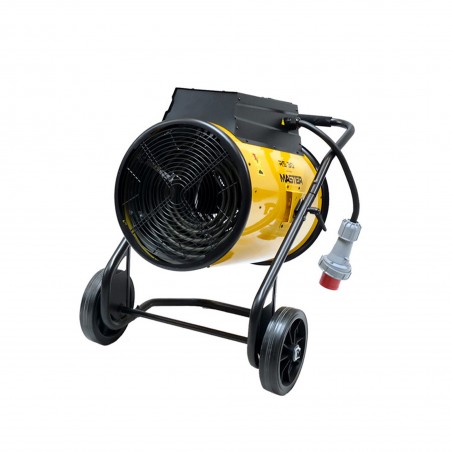

MASTER RS 40 electric heater
  • MASTER RS 40 electric heater
  • MASTER RS 40 electric heater
  • MASTER RS 40 electric heater

MASTER RS 40 electric heater

MASTER RS40

Efficiency [kW]: 13,0 / 26,0 / 40,0
Air flow [m3/h]: 3 100
Rated current [A]: 3 x 58
Power [V/Hz]: 380-400/50 - wtyczka (męska) 400V/63A/5P
Net weight [kg]: 46

6,950.00 zł
Tax included
Quantity

MASTER RS40
MASTER
View all products of MASTER

Model description

  • Possible connection to a flexible tube
  • Possible connection to an optional room thermostat
  • Easy to move thanks to big wheels
  • No oxygen consumption
  • No fumes, no odours, no humidity
  • Summer-Winter switch for ventilation only
  • Low noise
  • Manual reset
  • Motor with thermal protection
  • Stainless steel heating elements
  • Overheat thermostat
  • Adjustable heat
  • Strong and long lasting steel construction
Accesories
Room thermostat TH 5 with cable
3 m - 4150.105, 10 m - 4161.967
range: 0-36°C, accuracy: Âą 1,5°C

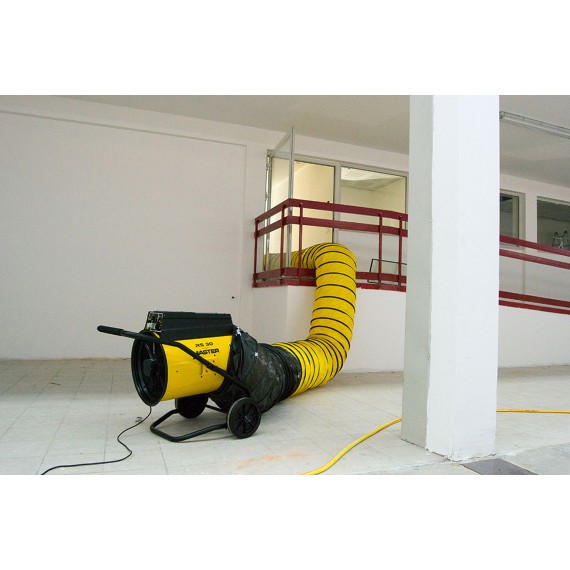

Flexible coated tube
7,6 m - Ø 508 mm - 4515.552
First 2m (black part) are made of a material resistant to 150°C.
Hose binder included.
Adaptor ring kit - 4210.180
Extension cord
5 m - 4511.035, 10 m - 4511.036

Data sheet

Efficiency [kW]
13,0 / 26,0 / 40,0
Efficiency [Btu/h]
44350 / 88700 / 136500
Efficiency [Kcal/h]
11180 / 22360 / 34400
Air flow [m<sup>3</sup>/h]
3 100
Rated current [A]
3 x 58
Power [V/Hz]
380-400/50 - wtyczka (męska) 400V/63A/5P
Switch position 1
wentylator
Switch position 2
13
Switch position 3
26
Switch position 4
40
Thermostat control
możliwa
Temperature limited [°C]
-30 / +35
Protection
IP20
Net weight [kg]
46
Gross weight [kg]
52
Dimensions - L. X width. X height. [mm]
870x630x770

Specific References

Download

Nagrzewnica elektryczna Master R

Download (90.66KB)

Schemat RS 40

Download (387.43KB)
